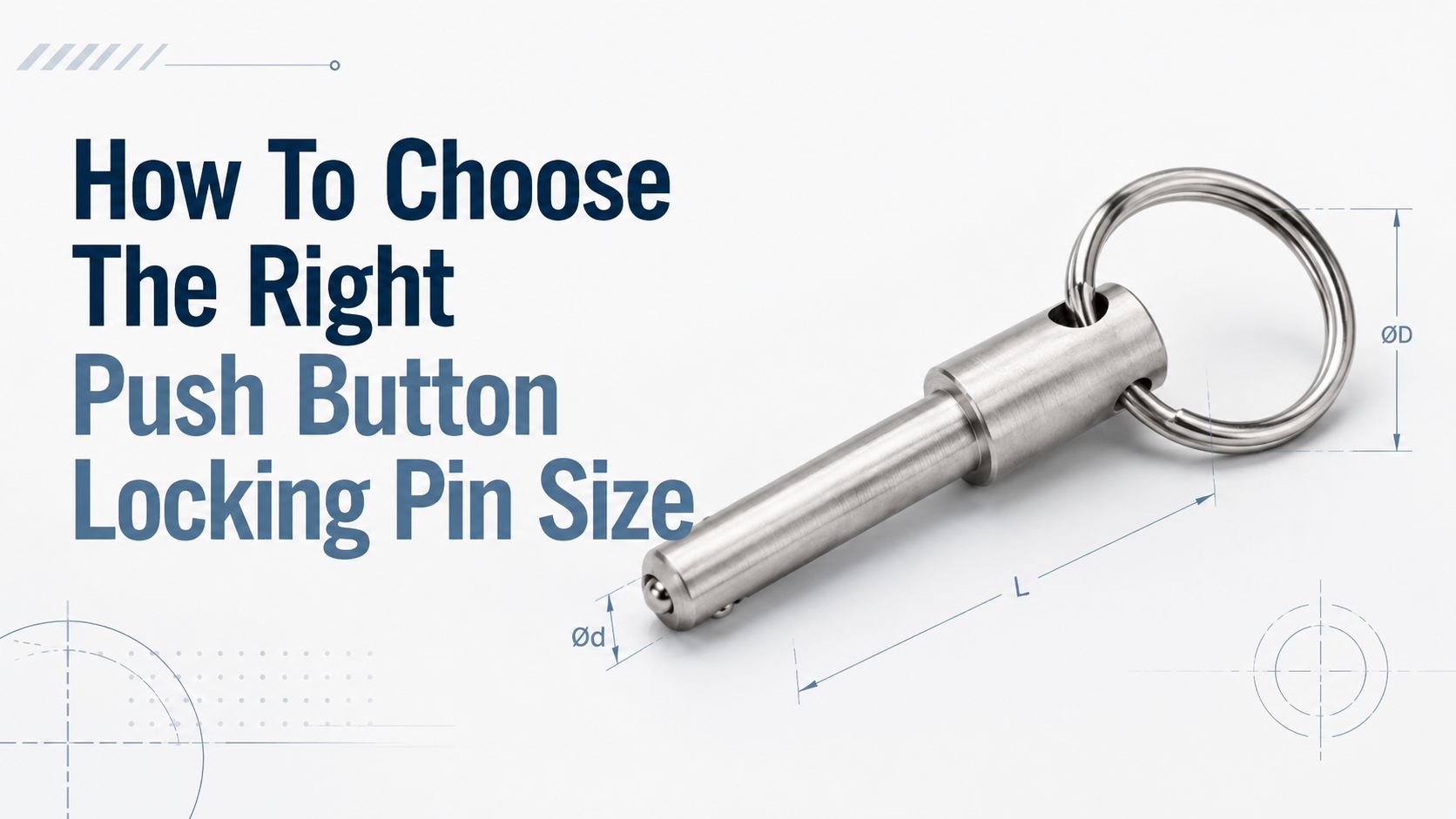

How To Choose The Right Push Button Locking Pin Size

A push button locking pin is often a low-cost component. Yet, it frequently secures high-value industrial assets. Sizing errors carry severe operational consequences. They lead to excessive machine downtime. They cause mechanical binding during daily assembly. You might even face catastrophic shear failure under heavy load.

Specifying the wrong pin size disrupts operations entirely. It turns an efficient quick-release system into a physical liability. You need absolute precision to avoid these costly manufacturing disruptions. Guessing sizes leads to damaged equipment and frustrated operators.

This article provides engineers and technical buyers a reliable framework. We will explore how to specify exact pin dimensions. You will understand realistic manufacturing tolerances. We will also help you evaluate environmental suitability before you place bulk orders. If you need specialized guidance on standard tolerances or custom project dimensions, you can always contact us.

Key Takeaways

• Grip length is not overall length: The most common specification error is measuring end-to-end rather than from the handle base to the locking ball detent.

• Clearance is critical: New hole designs require a +0.1mm to +0.2mm diameter clearance to prevent binding and accommodate wear.

• Beware nominal dimension overlaps: Many "metric" pins on the market (e.g., 2.8mm) are actually manufactured to closest imperial equivalents (0.115"), requiring strict tolerance verification.

• Internal materials matter most: Specifying 300-series stainless steel for internal springs and detent balls prevents premature failure, even if the main pin body is standard zinc-plated steel.

The Operational Impact of Incorrect Pin Sizing

You must understand the fundamental physical limitations of fastening hardware. Push button locking pins primarily absorb shear loads. They handle lateral forces effectively across the solid pin shaft. They do not handle extreme axial loads well. Heavy pulling forces require different fastening methods entirely.

Undersizing causes immediate and dangerous failures. A pin with an inadequate diameter creates mechanical slop. The assembly will rattle. It will eventually wear down the hole. A grip length that is too short is even worse. It traps the detent balls inside the material. They cannot deploy fully. This completely eliminates the locking mechanism's security.

Oversizing creates severe mechanical nightmares for field operators. Workers often force a tight pin into a zero-clearance hole. They might resort to using hammers. Forcing a press-fit damages the pin body. It also gouges the internal walls of the assembly hole. You immediately defeat the entire purpose of a tool-less quick-release system.

Decoding Push Button Locking Pin Measurements

Measuring errors constantly plague the procurement process. Buyers frequently measure the entire length of the pin. This end-to-end measurement is totally incorrect. It leads to unusable parts.

You must define and specify the true grip length. Measure strictly from the underside of the handle. Stop at the edge of the pin shaft. You must stop just before the protruding locking balls. This smooth cylindrical section is your actual working length. It dictates how much material the pin can safely hold.

Follow the "Material Thickness + Margin" rule to calculate your required length:

1. Measure the precise thickness of your primary structural plate.

2. Measure the thickness of your secondary plate.

3. Add these two physical values together to find total thickness.

4. Add a minor safety margin to ensure full detent clearance.

If you assemble two 15mm plates, your total material measures 30mm. You should recommend a grip length slightly longer, such as 31mm. The extra millimeter ensures the detent balls clear the back plate completely. They can then pop outward and lock the assembly securely.

Digital calipers require proper handling during inspection. You should measure the smooth shank to verify the diameter. You must strictly avoid the ball detent end. Squeezing the caliper over the balls yields inaccurate, inflated readings.

Pin Diameter vs. Hole Diameter: Navigating Clearances and Tolerances

Push button locking pins require a slip fit. They must slide smoothly in and out by hand. They do not use an interference fit. You must design clearance directly into your blueprints.

Provide a standard engineering baseline when machining new application holes. Add +0.1mm to +0.2mm to the pin's nominal diameter. This prevents binding. It ensures operators can insert the pin rapidly without tools. Below is a standard clearance chart for common metric sizes.

You must face a common metric vs. imperial reality check. Sourcing pitfalls happen due to international manufacturing standards. Nominal sizes frequently deviate from actual machined sizes. For example, a supplier might sell a pin as 2.8mm. It may actually gauge at 2.92mm. This corresponds to the closest imperial equivalent of 0.115". Strict tolerance verification prevents assembly floor surprises.

You can also compensate for wear strategically. Legacy equipment often suffers from worn, out-of-round holes. You can deploy slightly oversized pins to fix this issue. A tighter pin restores assembly rigidity. It saves you from replacing massive structural components.

Evaluating Material Strength and Corrosion Resistance

Material selection determines field longevity. You must match physical strength to your specific shear load. Baseline low-carbon steel works well. It suits light duty and indoor applications perfectly. Heavy-duty applications demand stronger materials. You should specify hardened medium-carbon alloy steel (Grades 5 or 8). You might also choose 17-4 or 17-7 stainless steel for extreme aerospace or agricultural loads.

You should understand the sacrificial anode principle. Trivalent passivate zinc-plated alloy steel protects the pin actively. The zinc layer acts as a physical barrier. It also serves as a sacrificial anode. It corrodes first to protect the underlying steel. It works effectively even if an operator scratches the surface.

You must address core component vulnerability. The external body is only part of the equation. The internal spring and locking balls handle constant movement. They remain highly vulnerable to rust.

You must emphasize internal material upgrades. Regardless of the main body material, specify superior internal parts. Demand 302 or 304 stainless steel for the internal spring and balls. This crucial upgrade prevents internal seizing in harsh environments. It guarantees the button will always depress smoothly.

Selecting the Right Actuation Mechanism and Handle Geometry

Operational workflow defines your actuation choice. You must choose between single-acting and double-acting pins.

• Single-Acting Pins: The ball detents depress automatically upon insertion. You only press the button for release. They are ideal for rapid workflows. Operators love them for one-handed tasks.

• Double-Acting Pins: They require deliberate action. You must push or pull the spindle for both insertion and removal. We recommend them heavily for high-vibration environments. They prevent accidental release during aggressive operation.

Ergonomics and spatial constraints dictate your handle selection. You must frame handle choice around operational reality. Every job site presents different physical limitations.

Use low-profile Button handles for tight clearances. They stay out of the way on crowded control panels. Choose T-handles or L-handles for gloved operators. Workers need a firm grip when wearing thick safety gear. Select Ring handles for standard manual operations. Rings also allow easy lanyard attachments. This prevents operators from dropping or losing pins.

Procurement Strategy: Prototyping and Risk Mitigation

Buyers often make critical mistakes during procurement. You must recognize the danger of over-specifying ball force. Buyers sometimes request maximum pull-out resistance indiscriminately. They mistakenly believe tighter is always better.

Overly stiff internal springs cause severe issues. They require immense thumb pressure. Operators struggle to remove the pins. Furthermore, stiff springs are prone to structural deformation. Repeated excessive compression leads to eventual mechanical failure.

You must prioritize prototyping for scale. Never blind-order thousands of units based on a digital drawing. We strongly recommend utilizing supplier prototyping services. You should test a single physical pin against the actual assembly. Do this before committing to bulk orders of 5,000 units or more. Physical testing validates your grip length calculation. It confirms your hole clearance perfectly.

Compliance and traceability secure your supply chain. Regulated industries demand rigorous documentation. Defense and aviation sectors have strict rules. You should advise your procurement team carefully. Verify whether the supplier provides cross-reference conversions. They must supply data for military (MS) and aerospace (NAS) standards. Authentic traceability ensures absolute safety.

Conclusion

Securing equipment requires a strict decision-making sequence. First, calculate the precise grip length using the material thickness rule. Next, verify actual diameter tolerances to guarantee a smooth slip fit. You must then select materials based on shear forces and environmental exposure. Finally, always validate your specifications with a physical prototype before scaling production.

Precision changes the nature of your equipment. Properly specified push button locking pins eliminate daily frustrations. They transition a bulky assembly from a high-maintenance bottleneck into a rapid workflow. A secure, tool-less connection empowers your operators. It keeps production moving quickly safely and efficiently.

FAQ

Q: What is the difference between a push button locking pin and a standard detent pin?

A: Push buttons use a manual internal spindle to retract the balls. You press the button to release the lock effortlessly. Standard detent pins rely purely on brute physical force. You must overcome heavy spring compression manually for both insertion and removal.

Q: Can a push button locking pin handle heavy axial (pulling) loads?

A: No. Engineers design them primarily for shear loads. High axial loads easily overcome the internal spring mechanism. The locking balls will retract under extreme pulling force. High axial applications require permanent bolted connections or specialized heavy-duty lifting pins.

Q: How do I prevent the loss of push button pins in the field?

A: You should specify pins with integrated handle rings. Secure them directly to the primary equipment. Use 6-to-24-inch stainless steel cables or durable nylon lanyards. This ensures operators never misplace the pin during routine maintenance or rapid changeovers.

Q: Why is my newly purchased metric locking pin not fitting into the designated hole?

A: Manufacturing variances and cross-standard approximations cause this issue frequently. Some metric pins align closely with imperial equivalents during manufacturing. Re-measure your pin with a digital micrometer. Ensure your assembly hole features the required +0.1mm clearance to prevent binding.
