Your Machine’s Perfect Click – Indexing Plunger
Indexing Plunger: A Detailed Overview

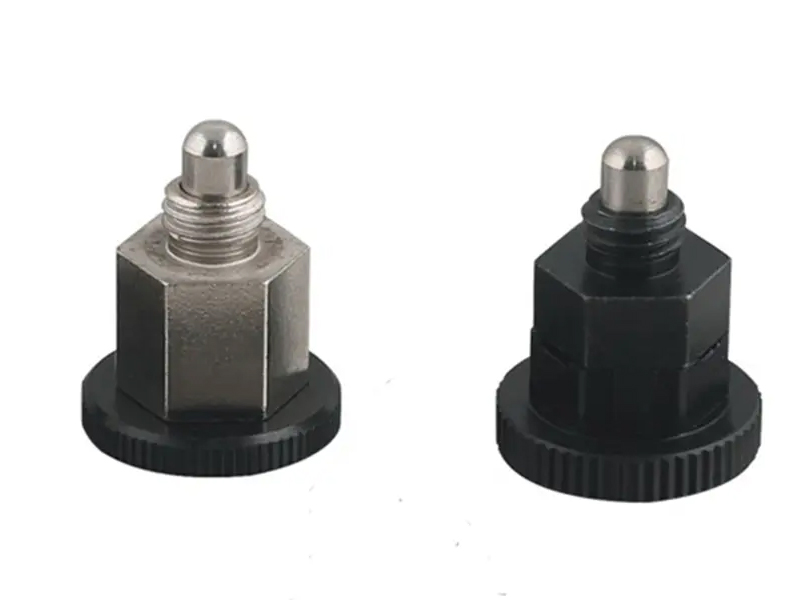

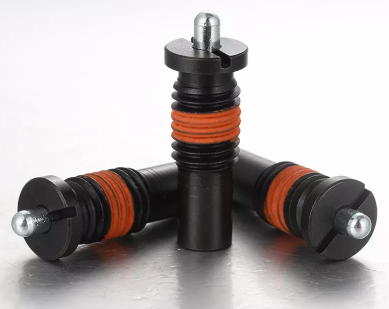

An indexing plunger (also known as a detent plunger, spring plunger, or locking plunger) is a mechanical device designed to provide precise positioning, locking, or alignment in machinery, automation systems, and industrial applications. It functions by engaging with holes, notches, or grooves to secure components in place, ensuring repeatable accuracy during rotary or linear motion operations.
Indexing plungers typically consist of:
Plunger Body: A cylindrical housing, often made of hardened steel, stainless steel, or aluminum for durability.
Spring Mechanism: A compression spring inside the body provides the necessary force to keep the plunger engaged.
Engagement Tip: The working end may have a ball, pin, or cone-shaped tip, depending on the application.
Actuation Mechanism: Manual versions use knobs or levers, while automated models may incorporate pneumatic, hydraulic, or electric actuation.
Indexing Plunger Application scenarios
CNC Machining & Rotary Indexing
In CNC machines and rotary tables, indexing plungers provide precise angular positioning for milling, drilling, or cutting operations. They engage with pre-drilled holes or slots on indexing plates, ensuring repeatable part rotation at exact degrees (e.g., 15°, 30°). This eliminates manual measurement errors, boosts productivity, and maintains tight tolerances (±0.01mm). Hardened steel plungers withstand vibration and high cutting forces.
Jig & Fixture Locking
Indexing plungers secure workpieces in welding jigs or inspection fixtures. A spring-loaded pin inserts into fixture holes, immobilizing parts during machining or assembly. For example, in automotive manufacturing, they lock engine blocks in place for drilling. Quick-release variants allow rapid part changes without tools, reducing downtime.
Robotic Positioning
Robotic arms use indexing plungers for repeatable end-effector positioning. In pick-and-place systems, a plunger engages with detents to ensure grippers align perfectly with target objects. Pneumatic plungers enable automated locking in high-speed packaging lines, preventing drift during movement.
Assembly Line Alignment
During conveyor-based assembly, plungers align components like gearboxes or circuit boards before fastening. A ball plunger guides parts into position smoothly, while latch-type plungers provide rigid locking for screwdriving stations. This minimizes misalignment defects in electronics or automotive assembly.
Why You Choose Our indexing plunger
Precision, reliability, and durability define our indexing plungers, making them the ideal choice for industrial automation, CNC machining, robotics, and assembly applications. Here’s why professionals trust our solutions:
Unmatched Precision – Engineered for micron-level repeatability (±0.01mm), our plungers ensure consistent positioning in high-tolerance operations like CNC indexing and optical alignment.
Superior Durability – Constructed from hardened steel, stainless steel, or corrosion-resistant alloys, our plungers withstand heavy loads, vibrations, and harsh environments (e.g., coolant exposure in machining).
Fast & Secure Locking – Optimized spring mechanisms enable instant engagement (<0.5 sec) with zero backlash, minimizing downtime in production lines.
Customization Options – From ball-tip to latch-type designs, we offer tailored solutions for specific force requirements, sizes, and actuation methods (manual/pneumatic/electric).
Proven Performance – Rigorously tested for 1M+ cycles, our plungers outperform competitors in lifespan and reliability, reducing maintenance costs.
Safety & Compliance – ISO 9001-certified manufacturing ensures consistent quality, while optional safety locks prevent accidental disengagement.

Strong - high load capacity
High Load Capacity Indexing Plungers: Engineered for Demanding Applications
In industrial automation and heavy machinery, indexing plungers must withstand substantial forces while maintaining precision. Our high-load-capacity plungers are specifically designed to deliver exceptional strength without compromising performance, making them ideal for rugged applications where reliability is critical.
Why Strong Indexing Plungers Matter
Heavy-Duty Locking – With load capacities up to 500 kg (1100 lbs), our plungers securely lock large components in place, preventing slippage in high-torque rotary tables or press machines.
Vibration & Shock Resistance – Hardened steel or tungsten carbide construction ensures stability in high-impact environments like stamping presses, mining equipment, and construction machinery.
Longevity Under Stress – Reinforced spring mechanisms and oversized bearings minimize wear, extending service life even under constant heavy loads.
Safe - secure locking
Secure Locking Indexing Plungers: Ensuring Safety and Reliability in Critical Applications
In industrial environments where safety is paramount, secure locking indexing plungers provide fail-safe positioning to prevent accidental disengagement, equipment damage, and workplace hazards. Our plungers are engineered with advanced safety features to deliver absolute reliability in high-risk operations.
Why Secure Locking Matters
Accident Prevention – Positive locking mechanisms eliminate unintended release, protecting operators in presses, lifts, and rotating machinery.
Vibration-Proof Design – Even under severe shaking (e.g., construction equipment or moving vehicles), our plungers stay firmly engaged.
Overload Protection – Built-in shear pins or torque limiters disconnect safely if forces exceed thresholds, avoiding catastrophic failures.


Fast - instant engagement
Speed & Efficiency:
Instant engagement indexing plungers eliminate the need for manual adjustments or secondary locking mechanisms. Their spring-loaded design allows quick insertion and release, reducing downtime in repetitive tasks like tool changes or workpiece repositioning. This is critical in high-speed production lines where milliseconds matter.
Indexing plungers with fast engagement excel in speed, accuracy, and durability, making them indispensable for modern manufacturing. Their ability to deliver instantaneous, reliable locking translates to enhanced performance and competitiveness in precision-driven industries.
FAQs about Indexing Plunger
What is an indexing plunger used for?
An indexing plunger is a mechanical device designed for precise positioning and locking in applications like jigs, fixtures, rotary tables, and automation systems. It ensures quick alignment and secure holding of components, improving accuracy and efficiency in machining, assembly, and tooling operations.
How does an indexing plunger achieve instant engagement?
Instant engagement is achieved through a spring-loaded mechanism that allows rapid insertion and locking into pre-drilled holes or detents. High-quality plungers feature smooth actuation (push-button, lever, or ball-lock systems) and hardened materials for immediate, vibration-resistant locking without manual adjustments.
What factors should I consider when selecting an indexing plunger?
Key factors include:
Load capacity – Ensure the plunger can handle expected forces.
Material & coating – Choose stainless steel or coated options for corrosion/wear resistance.
Actuation type – Select push-button, lever, or threaded styles based on accessibility needs.
Precision requirements – Opt for tight-tolerance models if high repeatability is critical.
