How to Select the Best Indexing Plunger

You need to consider several key factors when choosing the right indexing plunger for your applications. Think about how often you use the plungers and the load they must handle. Your environment may require corrosion-resistant material or compact plungers for tight spaces. Select a plunger mechanism and mounting option that fit your operation. The right plunger can improve safety, durability, and performance in your application.

Key Takeaways

• Choose indexing plungers based on how often you use them and the load they must handle to ensure durability and safety.

• Select corrosion-resistant materials like stainless steel for harsh or wet environments to extend plunger life.

• Pick the right plunger mechanism and mounting style to fit your space and operation needs for easy installation and reliable performance.

• Consider ergonomic features like knob or lever styles to improve comfort and reduce operator fatigue during frequent use.

• Use precision or lock/clamp variants when your application requires exact positioning or extra safety and holding power.

Indexing Plunger Basics

What Is an Indexing Plunger?

You use indexing plungers to lock, position, or locate moving parts in machines and equipment. These plungers provide a secure stop and allow quick adjustments. When you press the knob, the plunger pin moves into position, locking the component. Pressing again retracts the pin, releasing the lock. This action relies on a spring mechanism, making spring plungers reliable for repeated use.

You find many types of indexing plungers. Some use a cardioid mechanism, while others use a push-lock system. Each design supports different operational needs. For example, Elesa's GN 514 indexing plungers use AISI 316 stainless steel for corrosion resistance. The plunger pin moves freely, and the knob stays non-removable for safety. Halder's index plungers use a push-lock inspired by the 'biros principle.' The body uses blackened steel, and the locking pin uses nitrided steel. These plungers work well in tight spaces and can handle temperatures from -30°C to 80°C.

Tip: Always check the technical specifications before choosing spring plungers for your application.

Why the Right Indexing Plunger Matters

Selecting the right indexing plunger ensures your equipment operates safely and efficiently. You avoid unnecessary wear and reduce the risk of failure. The correct plunger supports the load and frequency of your application. It also resists corrosion and fits into tight spaces.

Spring plungers offer ergonomic operation. You can choose from different knob types for comfort and safety. When you match the plunger to your needs, you improve reliability and extend the life of your machinery. You also make maintenance easier and reduce downtime.

• Choose corrosion-resistant materials for harsh environments.

• Select compact plungers for limited space.

• Pick the right mechanism for your operation.

Spring plungers and indexing plungers play a key role in many industries. You benefit from their precision and durability every day.

Key Selection Criteria for Indexing Plungers

Application Frequency and Load

You must assess how often you use indexing plungers in your operations. High-frequency applications demand plungers that withstand repeated cycles without losing performance. Heavy loads require robust spring plungers that maintain reliable positioning under stress. If your equipment moves or locks into place many times each shift, select a plunger designed for durability. Some indexing plungers support multiple positions, which helps when you need flexible positioning or frequent adjustments. Always match the plunger's load rating to your application to prevent premature wear or failure.

Tip: For heavy-duty positioning applications, choose spring plungers with reinforced springs and hardened pins.

Environmental and Space Considerations

Your environment shapes the type of indexing plungers you need. Moisture, chemicals, and temperature extremes can damage standard plungers. In wet or corrosive settings, stainless steel or coated plungers resist rust and chemical attack. High temperatures may weaken springs or plastic components, so check the temperature range before you decide.

Space constraints also matter. Compact plungers fit tight assemblies and allow smooth indexing in limited areas. Push-fit spring plungers work well in confined spaces where threaded installation is not possible. Specialized plungers, such as lever-style indexing plungers, offer ergonomic operation in awkward locations.

• Use compact plungers for machinery with limited clearance.

• Select corrosion-resistant types for harsh environments.

• Consider push-fit spring plungers for quick installation in tight spots.

Material and Corrosion Resistance

Material selection affects both performance and longevity. Stainless steel plungers resist corrosion and suit food, medical, or outdoor applications. Carbon steel plungers, often with protective coatings, handle heavy loads but may not suit wet environments. Plastic or composite plungers offer lightweight solutions for less demanding tasks.

You should always match the plunger material to your environment. In sensitive industries, hygiene and corrosion resistance take priority. Stainless steel indexing plungers meet strict standards for cleanliness and durability.

Plunger Mechanism Types

You encounter several mechanism types when selecting indexing plungers. Each type offers unique benefits for different applications.

• Spring plungers use a spring to apply force to a ball or nose. They provide steady pressure and prevent movement under load. You find them in versatile indexing and positioning roles.

• Ball plungers feature a spring-loaded ball at the end. They allow quick detent action and fast engagement or disengagement. These plungers excel in quick locking and indexing functions.

• Detent mechanisms, often found in ball plungers, offer rapid locking and unlocking. They suit applications where you need fast engagement but do not require heavy load capacity.

Spring-loaded plungers, including threaded spring plungers and push-fit spring plungers, offer high reusability and safety. You can choose from T-handle, ring, button, or knob-style indexing plungers for different operational needs. Many comply with international standards, ensuring quality and interchangeability.

Mounting and Installation Options

You must select the right mounting method for your indexing plungers. Threaded spring plungers screw directly into tapped holes, providing secure installation and easy replacement. Push-fit spring plungers press into place, saving time during assembly. Some plungers use flanges or collars for extra stability.

Consider your assembly process. Threaded options suit permanent installations. Push-fit types work best for quick changes or when you need to minimize downtime. Lever-style indexing plungers and knob-style indexing plungers offer ergonomic actuation, making them ideal for frequent manual operation.

• Use threaded spring plungers for secure, long-term positioning.

• Choose push-fit spring plungers for fast, tool-free installation.

• Select the actuation style—knob, ring, or lever—that best fits your workflow.

Operation and Ergonomics

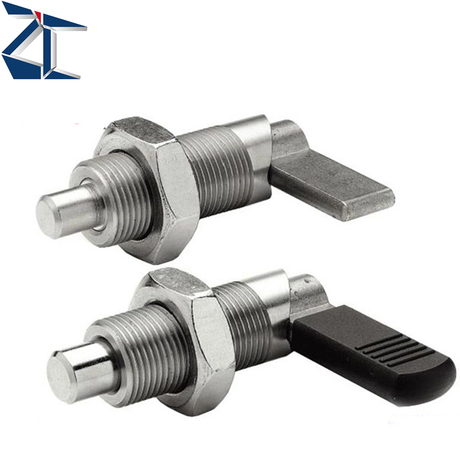

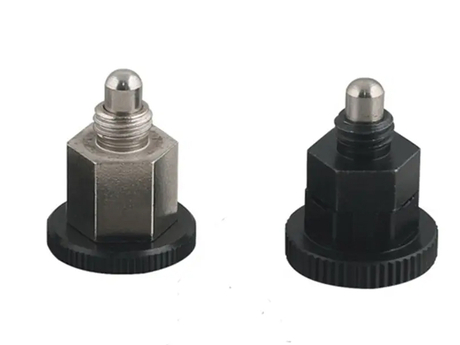

Operation comfort and safety matter in every application. You want plungers that are easy to actuate and reduce operator fatigue. Knob-style indexing plungers provide a comfortable grip for frequent use. Lever-style indexing plungers allow quick, one-handed operation, which speeds up repetitive tasks.

Automation often requires plungers that integrate with actuators or sensors. Spring plungers with automatic actuation improve efficiency in automated systems. Reliable positioning ensures your equipment stays safe and productive.

Note: Always test the ergonomics of your chosen plunger in real-world conditions before finalizing your selection.

You improve safety, efficiency, and reliable positioning by matching the plunger type, material, and mechanism to your specific needs. The right indexing plunger supports your positioning components and ensures smooth, repeatable indexing in every application.

Precision and Special Plunger Options

Precision Indexing Plungers

You may face applications where accuracy and repeatability matter most. Precision indexing plungers help you meet strict positioning needs. These plungers use ground pins and receiving bushings to deliver high-repeating accuracy. You can rely on their quality control, which ensures perfect indexing and smooth function every time.

• Ground pins and bushings guarantee precise end positions.

• Hardened ends and lockout features add durability.

• High retaining forces and stable fastening resist strong traverse forces.

• Quick change-over and rapid positioning support fast-paced operations.

You will not always find formal accuracy tests in technical documents, but you can trust the practical performance of these plungers. Their design focuses on reliability and long service life. If your project has a precision requirement, you should choose these indexing plungers for consistent results.

Tip: Use precision indexing plungers when you need exact, repeatable positioning in automated or high-speed setups.

Lock and Clamp Variants

You may need more than just positioning. Lock and clamp variants of spring plungers give you extra safety and holding power. Technical documentation highlights advanced locking mechanisms, such as self-intensifying clamps, which boost safety and efficiency. These plungers often feature fail-safe operation, so they will not release under load. Pneumatic actuation supports high load capacity and compact design, making integration easy.

You can find power-off locking mechanisms that clamp automatically if power fails. Certified safety compliance and industrial-grade reliability come from high-strength materials. These features make lock and clamp plungers ideal for demanding environments.

Toggle clamp types—vertical, horizontal, push-pull, and hook & latch—offer mechanical designs for different tasks. You benefit from quick clamping, easy release, and low maintenance. Their robust construction ensures reliable operation and secure holding, even in tough conditions.

You improve safety, reliability, and operational efficiency by selecting the right lock or clamp variant for your application. Spring plungers with these features help you meet strict industrial standards and keep your equipment running smoothly.

Quick Reference and Checklist

Feature Comparison Table

You can use this table to compare the most important features when selecting indexing plungers. It helps you quickly identify which type fits your needs for positioning, durability, and installation.

Tip: Always match the plunger's features to your application's requirements for best results.

Step-by-Step Selection Checklist

You can follow this checklist to make sure you choose the right indexing plungers for your project:

1. Identify how often you will use the plunger and the load it must support.

2. Check the environment for moisture, chemicals, or temperature extremes.

3. Measure available space for installation and decide if you need a compact design.

4. Choose the material that fits your industry's hygiene and corrosion needs.

5. Select the mechanism type that matches your operation—spring, ball, or detent.

6. Decide on the mounting method: threaded or push-fit.

7. Test the actuation style for comfort and safety.

8. Review if you need precision or special locking features for accurate positioning.

9. Compare options using the table above.

10. Consult technical data or suppliers if you have unique requirements.

Note: This checklist helps you avoid common mistakes and ensures your indexing plungers deliver reliable performance.

You make the best choice by following a clear selection process for indexing plungers. Consider application frequency, load, environment, and space. Evaluate precision needs and match the plunger type to your operation. Use the checklist to avoid mistakes.

• Industry reviews highlight that consulting suppliers leads to better results.

• A Shenzhen electronics manufacturer saw defect rates drop and operator efficiency rise after customizing plungers for precision tasks.

• Suppliers with deep expertise and certifications support custom solutions for unique environments.

Remember, your attention to precision and supplier guidance ensures reliable, cost-effective performance.

FAQ

What is the difference between a spring plunger and a ball plunger?

A spring plunger uses a pin to lock or position parts. A ball plunger uses a spring-loaded ball for quick detent action. You get steady pressure from spring plungers. Ball plungers allow fast engagement and release.

How do I choose the right material for my indexing plunger?

You should match the material to your environment. Stainless steel resists corrosion. Carbon steel handles heavy loads. Plastic works for light-duty tasks. Use this table for quick reference:

Can I install indexing plungers without special tools?

You can install push-fit plungers by hand. Threaded plungers need a wrench or screwdriver. Always check the manufacturer's instructions. They help you avoid damage and ensure a secure fit.

When should I use a precision indexing plunger?

You should use precision indexing plungers when your application needs exact, repeatable positioning. They work best in automated systems or setups that demand high accuracy.

Do indexing plungers require regular maintenance?

You should inspect plungers regularly for wear or debris. Lubricate moving parts if needed. Clean them to prevent sticking. Regular checks help you maintain safe and reliable operation.
