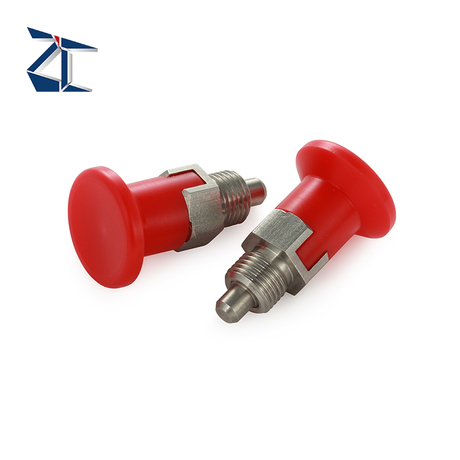

When an indexing plunger "doesn't feel reliable," the issue is often not the plunger. It's the hole. Bore size, chamfer, and engagement depth decide whether the pin finds the target smoothly—or fights burrs, edge damage, and misalignment for the rest of its life.
This guide focuses on receiving-hole design (not product selection). If you also need model options, start from our indexing plunger category and match the pin diameter and stroke to your mechanism.
An indexing plunger pin is spring-driven. That spring force is finite. If the hole entrance is sharp, the bore is too tight, or the alignment stack-up is poor, the pin will:
skid across the surface instead of entering,
create edge wear that gets worse over time,
stick halfway (most common "mystery failure"),
or ream the bore into an unintended shape.
A good hole design makes engagement "self-guiding" even under vibration, quick changeovers, and operator variation.
Most receiving holes should be designed as a functional clearance fit relative to the pin diameter. The goal is smooth entry, not airtight fit.
Rule of thumb
Use light clearance for precision fixtures and stable alignment.
Use more clearance for dirty environments, painted parts, or mechanisms with higher stack-up.
Keep the bore round and burr-free (reaming or finish drilling is typical).
Avoid soft surface coatings inside the bore if you expect heavy cycling.
If your part will be welded or heat-treated after machining, plan for distortion.
A lead-in chamfer helps the pin "find" the hole and prevents mushrooming at the entrance.
Good practice
Add a chamfer at the receiving hole entrance.
If the pin approaches at speed (automation), use a larger lead-in.
Sharp edges (they create immediate edge deformation).
Countersinks that are too deep (they reduce effective engagement depth).
Pin engagement depth is what resists movement. Too shallow engagement causes:
vibration-induced disengagement,
edge chipping,
and unstable indexing accuracy.
Guideline approach
Define the minimum engagement depth based on how much shear area you need.
If loads are uncertain, increase engagement depth first (often easier than upsizing the whole plunger).
Misalignment rarely comes from a single dimension. It comes from:
hole position tolerance + part-to-part clearance,
bracket flatness and squareness,
hinge play,
machining datum differences,
thermal growth (especially in long fixtures).
Ask one question: Can the pin centerline ever be outside the hole entrance radius?
If yes, the pin may ride the edge and stick. Fix this with:
larger lead-in,
slightly larger bore,
better locating datums,
or an added guide feature.
Below is a practical template you can adapt for your drawings (final values depend on your pin material, surface finish, and cycling requirements):
| Design Item | Conservative Starting Point | Why it helps |
|---|---|---|
| Bore relative to pin Ø | Light clearance fit | Prevents sticking, eases engagement |
| Entrance chamfer | Add chamfer/lead-in | Guides pin, reduces edge damage |
| Bore finish | Smooth, burr-free | Reduces friction and wear |
| Engagement depth | Increase when loads/vibration increase | Improves lock stability |
| Alignment | Control datum & squareness | Stops edge riding and jamming |
Before release to production, verify:
The hole entrance has a clean lead-in.
No burrs remain after drilling/reaming.
Engagement depth meets your worst-case load assumption.
The mechanism can tolerate real-world misalignment.
Operators can engage/disengage without "hunting."
