In precision machinery and industrial applications, choosing the right mechanical locking or positioning component is critical for reliability, safety, and efficiency. Two common devices used for positioning and locking are indexing plungers and ball lock pins. While both serve similar purposes, their design, operation, and application suitability differ. Selecting the wrong component can lead to operational inefficiencies, excessive wear, or even equipment failure.
This article provides a detailed guide on when to use an indexing plunger instead of a ball lock pin, highlighting design features, operational advantages, and practical applications. It also emphasizes why partnering with experienced suppliers like Dongguan Zhengchen Hardware Co., Ltd. ensures high-quality, reliable components tailored to specific industrial needs.
Both indexing plungers and ball lock pins are mechanical devices used to lock or position movable parts. Understanding their operational principles is the first step in determining which is most suitable for a particular application.

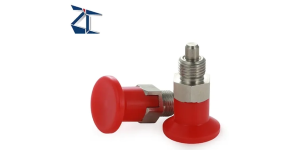

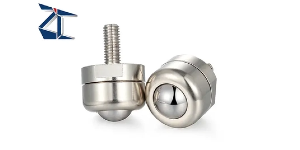

Indexing plungers typically consist of a spring-loaded pin housed in a threaded or press-fit body. When actuated, the pin extends to engage a mating surface, providing a secure lock or positioning function. Features include:
Spring-loaded engagement for precise positioning
Locking detents to maintain position under load
Adjustable installation options through threaded or press-fit designs
Indexing plungers are often used in assemblies where repeated, accurate positioning is critical, such as adjustable machine tables, fixtures, and jigs.
Ball lock pins, also known as quick-release pins, rely on balls at the pin tip that engage a hole or recess to lock the pin in place. They are typically released by pressing a plunger or button at the opposite end. Key features include:
Quick-release mechanism for fast insertion and removal
Smooth cylindrical pin body for easy alignment
Ball retention system for secure holding without threading
Ball lock pins excel in applications where speed of engagement and disengagement is the primary concern, such as removable panels, modular fixtures, or equipment requiring frequent changeovers.
While indexing plungers and ball lock pins can both lock or position components, several critical differences dictate their ideal use.
Indexing Plunger: The pin is spring-loaded and often engages a detent or hole, maintaining a fixed position until manually retracted.
Ball Lock Pin: The balls at the pin tip engage automatically upon insertion, and the plunger at the opposite end releases them for quick removal.
The indexing plunger provides more controlled, repeatable engagement, while the ball lock pin emphasizes speed and convenience.
Indexing Plunger: Can be threaded into a housing or press-fit for permanent placement. Installation may require precise alignment with the mating surface.
Ball Lock Pin: Typically free-floating and removable, requiring minimal permanent installation. The mating hole must match the ball diameter for proper locking.
Indexing plungers are more suitable for fixed, long-term positioning, whereas ball lock pins are ideal for frequently removable assemblies.
Indexing Plunger: Designed to withstand higher axial loads and maintain position under vibration or operational stress.
Ball Lock Pin: Provides secure holding for moderate loads but may not be ideal for applications with high vibration or shear stress.
When maximum retention and mechanical stability are critical, indexing plungers often outperform ball lock pins.
Indexing Plunger: Suitable for repetitive but not constant engagement. The operator manually actuates the plunger for each positioning.
Ball Lock Pin: Designed for rapid, frequent engagement and disengagement, minimizing assembly or disassembly time.
Choosing the right device depends on whether operational speed or load retention is the priority.
There are several scenarios where indexing plungers are the better choice over ball lock pins.
In machinery exposed to vibration, axial loads, or shear forces, indexing plungers provide secure engagement that maintains positional accuracy. The spring-loaded pin ensures that even under operational stress, the plunger remains in place, preventing misalignment.
For adjustable tables, jigs, or fixtures where components must stay locked in place for extended periods, indexing plungers offer a stable, repeatable lock. They are ideal for setups that do not require rapid removal but demand consistent accuracy.
Many indexing plungers feature detent mechanisms, allowing the pin to lock into predefined positions. This is particularly useful in rotational or linear indexing assemblies, where the component must snap into precise locations for machining or assembly operations.
In assemblies where the operator cannot easily access a pin for quick removal, indexing plungers provide a reliable locking method without the need for constant manual release. The plunger can be installed in a housing and only actuated when adjustment is required.
Although indexing plungers have several advantages, ball lock pins remain superior in certain situations.
Ball lock pins are ideal for rapid setup or removal, such as securing panels, removable guards, or modular components. Pressing the release plunger allows immediate disengagement without threading or alignment procedures.
In manufacturing lines or assembly stations requiring frequent reconfiguration, ball lock pins reduce downtime compared to indexing plungers, which require manual actuation and may involve threaded installation.
Ball lock pins are often more compact and lightweight, making them suitable for portable equipment, lightweight frames, or assemblies with limited material thickness.
Evaluate the axial and shear loads the component will experience. Indexing plungers generally handle higher loads, while ball lock pins are better for moderate or intermittent loads.
Consider the frequency of engagement and disengagement. Ball lock pins excel in rapid, repetitive actions, whereas indexing plungers are better for stable positioning over longer durations.
Vibration and shock: Indexing plungers maintain position better under vibration.
Temperature and exposure: Both types can be manufactured in stainless steel or coated materials to resist corrosion, but specific material selection may favor plungers for extreme conditions.
Threaded indexing plungers require installation with proper alignment and torque, whereas press-fit or threaded ball lock pins allow faster installation and replacement. Consider maintenance access and replacement frequency when making a selection.
Determine load requirements to select the appropriate spring tension and pin diameter.
Specify thread or press-fit dimensions accurately to ensure proper fit.
Consider tip design and detents to match the operational profile of the assembly.
Coordinate with suppliers to verify material, finish, and environmental compatibility.
Professional suppliers like Dongguan Zhengchen Hardware Co., Ltd. provide detailed guidance on both threaded and press-fit plungers, helping engineers choose the right solution for their applications.
Selecting between indexing plungers and ball lock pins depends on load, engagement frequency, accessibility, and environmental conditions. Indexing plungers are preferred for high-load, semi-permanent, or detent-based applications where positional accuracy and retention are critical. Ball lock pins are ideal for rapid, frequent assembly changes, lightweight structures, and portable or modular equipment.
Working with professional suppliers such as Dongguan Zhengchen Hardware Co., Ltd. ensures the correct type of plunger is selected, manufactured to specifications, and delivered with high reliability. Their expertise guarantees that machinery and assemblies operate efficiently, safely, and with minimal maintenance.
Q: What is the main difference between indexing plungers and ball lock pins?
A: Indexing plungers use a spring-loaded pin for stable, repeatable positioning, while ball lock pins rely on balls at the tip for quick-release and rapid engagement.
Q: When should I use an indexing plunger instead of a ball lock pin?
A: Indexing plungers are ideal for high-load applications, semi-permanent positioning, or assemblies requiring detents for precise locking.
Q: Can ball lock pins handle high vibration or heavy loads?
A: Ball lock pins are generally better for moderate loads and quick engagement; indexing plungers provide superior retention under vibration or high loads.
Q: How can a supplier help in selecting the right plunger?
A: Experienced suppliers provide guidance on load, material, installation, and environmental conditions to ensure reliable performance.
