Ever wonder what gives that satisfying “click” in mechanical devices? It’s often thanks to a small part called a spring ball plunger. These tiny tools are powerful when used right—but easy to misuse.
In this post, you’ll learn how to choose, install, and use a spring ball plunger effectively, plus tips for troubleshooting and comparing it with similar plungers.

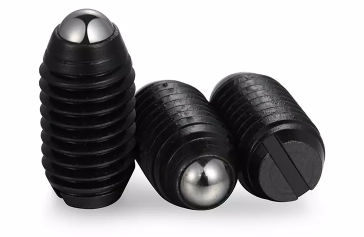

A spring ball plunger is a small mechanical device designed to position, hold, or lock parts in place using a spring-loaded ball. You’ve probably felt it in action without even realizing—like that gentle resistance and click when sliding a panel or adjusting a knob. It’s built for simplicity, but it plays a key role in machines, jigs, fixtures, and many everyday mechanisms.
The plunger has three main parts inside a single compact body. First, there's the body itself, which is often threaded so it can be easily installed into a pre-drilled hole. Then, tucked inside, there’s a spring. That spring pushes outward against a smooth ball at the tip. When force is applied, the ball gets pushed back into the body, compressing the spring. As soon as the force is released, the ball pops back out. That action is what helps parts snap into place, align accurately, or even eject slightly when needed.
Now, you might be wondering how this is different from a general spring plunger. The answer comes down to the tip. While both use a spring to apply force, a spring ball plunger has a rounded ball at the end. Traditional spring plungers usually have a pointed or flat nose. That change in shape affects how they perform. Ball plungers work best when forces come from various directions and are ideal for light-duty positioning. On the other hand, spring plungers with longer noses are better when sideways pressure is involved. They also tend to hold more firmly in higher-load applications.
So, when you’re dealing with smooth movement, gentle detents, or soft materials, the ball plunger is the go-to option. It may be small, but it does a lot behind the scenes to keep things working the way they should.
A spring ball plunger works using a pretty simple but clever setup. Inside its metal or plastic body sits a small compression spring. At the tip, there’s a round ball that sticks out slightly. When something presses against that ball, it pushes inward. That pressure causes the spring to compress, storing energy as it gets shorter. Once the force is removed, the spring expands again and pushes the ball right back out. That’s how it resets itself and gets ready for the next cycle.
Now, let’s talk about what happens during actual use. When the plunger is lined up with a hole, groove, or detent in another part, the ball rolls or slides right into that space. The spring snaps it into position and holds it there. That moment is called engagement. It gives a clear feel—like a click or snap—letting you know the part is locked in place. To move it again, you apply enough force to push the ball back into the body. That’s disengagement. It’s smooth, quick, and repeatable, which is why so many people use ball plungers for positioning parts that need to shift or slide but stay put when released.
Something people often overlook is the spring’s preload and end force. Preload is how much force the spring applies when the ball is at rest, just barely compressed. End force is what it takes to push the ball all the way in. These values affect how firm the plunger feels, how hard it locks, and how much resistance it offers during use. Choosing the right spring force matters—too weak and parts may slip, too strong and they may jam or wear down over time. It’s all about balance, depending on the job.

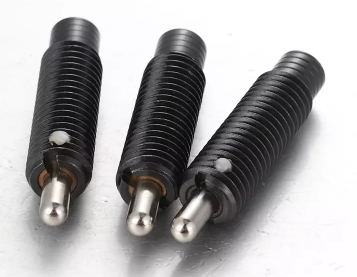

Not all spring plungers look or act the same. The biggest difference comes down to the shape at the tip. Spring ball plungers use a round ball, usually made of steel or plastic. That ball rolls slightly when pressure is applied, making it perfect for sliding or rotating parts. Standard spring plungers, on the other hand, use a longer nose. This nose doesn’t roll—it pushes straight in, usually with a sharper or narrower tip. Because of that, it handles different kinds of loads.
If you’re wondering which type to use, it depends on what you're working on. Ball plungers work best in light-duty setups where parts move often and need a gentle lock—think knobs, panels, or low-force click stops. They’re also ideal for delicate surfaces since plastic balls won’t leave marks. Standard spring plungers are built for more demanding tasks. Their nose can press harder into surfaces and hold stronger, which makes them better for fixtures that stay locked in place or for rougher environments.
Another thing that sets them apart is the direction of force they handle. Ball plungers can take light force from different angles—top, side, or even at an angle—because the ball can roll slightly under pressure. That makes them more flexible. In contrast, a spring plunger with a long nose is designed mostly for straight, vertical force from above. If you apply force from the side, it might not compress the way you need, or it could even bend over time.
Choosing between the two really comes down to how your parts move and what kind of holding strength you need. A simple switch in plunger type can make a big difference in how smooth or secure your design feels.
You’ll find spring ball plungers in all kinds of industries because they’re small but super handy. In manufacturing, they’re often used in fixtures or jigs to hold parts in place during assembly or machining. They help keep everything aligned while allowing for quick removal or adjustment. In electronics, these plungers are used in delicate mounting setups where light holding force is all you need. They’re perfect for panels, test equipment, or switch components where gentle pressure and repeatable positioning matter. Automation systems also rely on them—especially in areas where machine parts move, reset, or need to stay in a temporary locked position.
Let’s break down some of the most common places they show up:
| Industry | Example Use Cases |
|---|---|
| Manufacturing | Positioning workpieces, securing sliding panels |
| Electronics | Non-marring contact points, fixture alignment |
| Automation | Click stops, light locking in moving assemblies |
| Test & Lab Gear | Repeatable detent settings in optical benches |
They shine the most in light-load setups. If your application needs a soft click, easy movement, or protection against surface damage, ball plungers do the job well. They don’t need much pressure to work, and the ball rolls smoothly into place. But for heavier loads—where locking strength matters more—you might need a spring plunger with a stronger nose. Ball plungers aren’t made to take deep, constant pressure. If the load’s too heavy, the ball can sink too far or lose its holding ability.
So it comes down to this: use spring ball plungers where you need speed, flexibility, and precision—not brute strength.
Not all ball plungers are built the same, and choosing the right one can make a big difference. One of the most common types is the threaded ball plunger. It has external threads on the body, so you just screw it into a tapped hole. This type gives you flexibility when adjusting position or swapping parts, especially in fixtures, knobs, or sliding components. If you need something fast and secure, threaded versions are often the go-to.
Then we have press-fit plungers. These don’t use threads at all. Instead, you push them into a smooth bore that’s just the right size. It’s a quick install with no tools needed, making them ideal for high-volume production or tight spaces. But once they’re in, removing them usually isn’t as easy as threaded ones. So we use them when changes aren’t expected often.
There are also different drive styles. Some ball plungers have a slotted head—so you can tighten or remove them with a flathead screwdriver. Others have a hex socket, which works with Allen keys and gives better control when applying torque. For delicate surfaces, there’s a version that uses a plastic ball instead of steel. The plastic tip helps avoid scratches on soft materials like aluminum or painted parts. You’ll often see these in electronics or optical equipment.
Here’s a quick look at the main types:
| Plunger Type | Best For | Mounting Method |
|---|---|---|
| Threaded | Adjustable stops, jigs, rotary knobs | Screw into tapped hole |
| Press-Fit | High-volume or compact assemblies | Push into smooth bore |
| Slotted Drive | Basic tools and easy installation | Flathead screwdriver |
| Hex Socket | Precision torque and tight fits | Allen key |
| Plastic Ball | Non-marring contact on soft materials | Threaded or press-fit |
When choosing a mounting type, think about how often you’ll need to install, adjust, or replace the plunger. If the part might wear or need frequent repositioning, go with threaded. If space is tight and you want speed, press-fit could be the better choice.
Choosing the right spring ball plunger isn’t just about size—it’s about performance. First, think about the load it needs to handle. Is it locking a small panel or holding a fixture in place during heavy-duty machining? For light loads, you can go with a standard ball plunger. But if there’s more weight or vibration, you’ll need something stronger.
Spring force makes a big difference too. A light spring gives you soft engagement and easy release. It’s perfect when you want smooth movement or when users will adjust it often by hand. A heavy spring takes more effort to compress but holds the part more securely. Use that in places where things can’t afford to shift or vibrate loose.
Material matters just as much as force. The body is usually made of stainless steel, carbon steel, or brass. Stainless works best in wet or corrosive environments. Carbon steel is tough and cost-effective but might rust over time. Brass is softer, good for non-sparking setups or when you’re threading into delicate parts. The ball itself can be made of hardened steel, stainless, or plastic. Steel gives strength, but plastic is gentle on surfaces—great for electronics or decorative finishes. As for the spring, you’ll see stainless or music wire. Stainless resists corrosion, while music wire can handle higher loads.
Also, think about the environment and the surface the plunger touches. If it’s exposed to moisture, go stainless. If it presses into painted metal or plastic, use a plastic ball to avoid marks. Even temperature can matter—some materials won’t hold up in high-heat conditions. Picking the right combination means fewer problems and longer part life.
Installing a spring ball plunger starts with preparing the right hole. You’ll need to drill it based on the thread size of the plunger. Always check the manufacturer’s tap drill chart so the hole isn’t too tight or too loose. If it’s too small, the tap could break. If it’s too big, the threads won’t hold. After drilling, tap the hole straight—keep the tap perpendicular so the plunger seats evenly. Clean out all chips and oil before moving on.
Once the hole is ready, it’s time to insert the plunger. Don’t grab it with pliers or crush it into place. Use a flathead screwdriver for slotted versions or a hex key for socket types. Start threading it in gently by hand so you don’t cross-thread it. Then turn it in until it’s snug. No need to crank it down. If you overtighten, the body might compress and the ball won’t move smoothly. In high-vibration setups, you can add a drop of medium-strength threadlocker before inserting.
For threaded ball plungers, countersinking is a smart move. A 90-degree countersink that’s slightly wider than the major thread diameter helps the locking element compress properly. This gives better contact and keeps the plunger from backing out. It also ensures the ball can extend freely without being blocked by burrs or surface edges.
Once it’s installed, test it. Move the mating part back and forth over the ball. Feel for a clean click or pop as it locks into place. If the ball doesn’t move smoothly or seems stuck, remove and reinstall it with less torque. If the engagement feels too weak, you might need a plunger with stronger spring force.
Spring ball plungers work great when you need quick, repeatable positioning or light ejection. Use them where parts need to snap into place without much effort—like guiding a panel into alignment or helping a piece settle into a fixture. They’re also handy when you want a part to gently pop out after being released. That ejection is caused by the spring pushing the ball outward, giving the part a nudge when disengaged.
You can also rely on them for indexing, locking, or even braking light motion. In an indexing setup, the ball drops into grooves or holes, creating a clear stop point. This helps rotate parts land exactly where they should. If you’re using it for locking, make sure the ball engages fully into a secure feature. It shouldn’t rely on surface friction alone. For light braking, a ball plunger adds just enough drag to slow down movement or hold a part steady, without clamping it too hard.
To keep engagement cycles consistent, everything needs to stay clean and aligned. If the ball hits the edge of a groove instead of dropping in, it can cause extra wear or get stuck. We should always align the mating part precisely and make sure the ball returns fully each time. Lubricating the plunger helps too, especially in high-cycle setups. That prevents sticking and lets the ball reset smoothly.
Use this quick reference to match function with plunger behavior:
| Task | What to Look For |
|---|---|
| Positioning | Smooth ball entry, low spring force |
| Ejection | Clean ball extension, enough push to release |
| Indexing | Precise detent geometry, repeated contact |
| Locking | Full ball seating into a secure stop |
| Braking | Controlled drag, no full engagement needed |
Keeping a spring ball plunger in good shape isn’t complicated, but a little routine care goes a long way. Start with regular lubrication. If the plunger is used often—say in a fixture or a moving assembly—apply a small amount of light machine oil every few months. That helps the ball move freely and prevents the spring from sticking inside the body. If it’s exposed to dust, moisture, or chemicals, you might need to clean and relubricate more often.
It’s smart to create a simple inspection schedule too. Once in a while, remove the plunger and check the ball’s movement. It should slide in and pop back out smoothly. If it’s sluggish or stuck, the spring may be clogged or the housing slightly deformed. Don’t forget to check the surrounding area as well. Metal chips or surface damage can cause poor engagement over time.
Sometimes, even the best-maintained plungers wear out. The ball can flatten slightly or the spring may lose its tension. If the engagement starts to feel weak or inconsistent, swap it out. These parts aren’t expensive, and replacing them before failure saves time and trouble later on. You’ll also want to pay attention to how the plunger behaves during each cycle. If the ball doesn’t fully extend or if the click feels softer than before, that’s a sign the internal spring is weakening.
Using a spring ball plunger may seem simple, but getting the most out of it depends on choosing the right type, installing it correctly, and maintaining it regularly. From positioning to locking, this small part plays a big role in making machines work smoothly. The material, spring force, and mounting style all affect how well it performs. Always match the plunger to the job, and don’t forget—this tiny device can make a major difference in precision and reliability.
A spring ball plunger helps position, lock, or eject components by using a spring-loaded ball that presses into or rolls along a mating surface.
Not recommended. Ball plungers are ideal for light loads. For higher forces or more secure locking, use standard spring plungers with longer noses.
Use light spring force for gentle positioning and frequent adjustments. Choose heavy spring force for firm locking or vibration-heavy environments.
No. Plastic ball plungers are softer and meant for protecting delicate surfaces. They’re great for electronics or soft materials but not for high-stress use.
Inspect monthly, lubricate every few months, and replace if the spring weakens or the ball gets stuck or worn.
