Ever wonder how machines get their parts to line up just right? That perfect fit often depends on small components like spring plungers. These parts help with positioning, clamping, and alignment in mechanical systems. But for even greater control, eccentric bushings come into play.
In this post, you'll learn what eccentric bushings are, how they work with spring plungers, and why they're key to precision in engineering setups.
An eccentric bushing is a small mechanical sleeve that helps adjust the position of a spring plunger. What makes it different is that the hole in the middle isn't centered. That small detail changes everything. By simply turning the bushing, you can shift the spring plunger’s contact point just a little, which helps fine-tune how it pushes or holds parts in place.
So, how does this differ from a regular bushing? A standard or concentric bushing has a hole right in the center. When you install a spring plunger into it, the position stays fixed. But an eccentric bushing has an offset hole. That means as you rotate it, the plunger inside moves in a small circular path. This lets you make super small adjustments without changing the entire setup. It’s like turning a tiny steering wheel to line things up just right.
This kind of control is useful when you’re working with machines that need perfect alignment. If a part is slightly off, or if something wears down over time, a quick turn of the eccentric bushing can bring it all back into place. No need for new parts or major changes. Just rotate, check, and lock it where you want. That’s why they’re popular in jigs, fixtures, and tools where accuracy matters a lot.
Eccentric bushings may look simple, but there's a clever bit of geometry going on. The core idea is this: when you rotate the bushing, the spring plunger inside doesn’t just spin—it actually shifts position in a small, controlled circle. That happens because the inner hole of the bushing isn’t centered. It’s offset, or eccentric, and that tiny difference allows for precise linear movement.
Let’s break down a few key terms. The outer diameter, or OD, is the outside size of the bushing that fits into the mounting hole. The inner diameter, or ID, is where the spring plunger threads in. The most important part, though, is the eccentricity value, or e. That’s the distance between the center of the outer circle and the center of the inner hole.
Here’s the simple math behind it: when you rotate the bushing halfway (180 degrees), the plunger tip moves from one side of that offset to the other. So the total adjustment range is 2e. If your bushing has an eccentricity of 0.5 millimeters, that means you can shift the plunger’s tip by a full 1.0 millimeter just by turning the bushing. That’s enough to correct for wear, tolerance stack-up, or small part shifts during production.
You can picture the movement like this: imagine drawing a tiny circle using the plunger tip as your pencil, and the bushing’s rotation moves the pencil around that path. As the bushing turns, the plunger’s tip traces that circle and changes where it presses against a part. This way, engineers and machinists can get exact alignment without drilling new holes or swapping out parts. It’s a fast, repeatable fix that only takes a small tool and a few seconds to dial in.

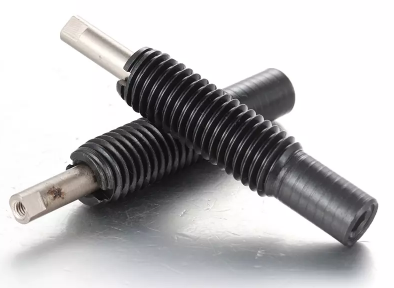

Spring plungers are small, spring-loaded devices that push against a surface to position or hold something in place. Inside each one, there’s a body, a spring, and a ball or nose tip. The spring applies constant pressure outward, so the tip stays extended until it's pushed back. As soon as the force is removed, the spring returns the tip to its original spot. That simple motion makes these components super useful in mechanical systems.
You’ll find spring plungers in tons of places. They help lock parts into position, hold workpieces steady in jigs or fixtures, provide that click you feel when turning knobs, or even help push finished parts out of molds. Whether it’s for indexing a rotary table, keeping parts aligned, or creating detent positions on a dial, they’re all about reliable, repeatable pressure.
Now, when you pair a spring plunger with an eccentric bushing, things get even better. The bushing lets you rotate and shift the plunger’s position without moving anything else. That’s especially handy in setups where you need fine-tuning or where part sizes aren’t always the same. Once adjusted, the plunger still does its job—it just starts from a slightly different spot.
Not all spring plungers fit this setup, though. Eccentric bushings typically work with lateral spring plungers, which apply pressure from the side. Standard ball plungers that push straight out usually won’t align properly in this kind of housing. So if you're using an eccentric bushing, make sure the plunger is the right style to match.
Using eccentric bushings together with spring plungers opens up a level of control that fixed setups just can’t offer. Instead of relying on a single locked-in position, we get the ability to shift the plunger slightly to match the exact spot where it needs to press. This is especially helpful when parts aren’t perfectly sized or when something starts to wear down after repeated use.
One of the biggest advantages here is improved positioning accuracy. Since the bushing lets the plunger shift as it rotates, it becomes easier to align parts or apply pressure exactly where it’s needed. Even tiny changes—fractions of a millimeter—can make a big difference in the final product. In applications like jigs, clamps, or indexing tools, this kind of precision helps avoid misalignment and keeps everything running smoothly.
There’s also the benefit of flexibility. We know that not every part is the same size. Some workpieces have small variations from batch to batch, and over time, surfaces or detents may wear out. Rather than remaking a fixture or adding shims, you can just turn the bushing and readjust the plunger. It’s fast, easy, and doesn’t require you to take the whole setup apart.
Because adjustments are made by rotating the bushing, there’s no need for major changes. That makes it repeatable, too. Once you find the right position, you can lock it in and trust it’ll stay there. If it needs tweaking later, the same process applies—just a turn, a test, and you’re back in action. It’s a simple way to extend the life of a tool and maintain consistency in performance.
In production environments, jigs and fixtures help hold parts steady for drilling, cutting, or welding. But not all parts are exactly the same size. Some may come out slightly bigger or smaller due to machining tolerances. That’s where eccentric bushings come in. By adjusting the plunger's contact point, we can fine-tune the location of part locators or clamps. This makes sure every piece is held snug, even if the previous one was a little off. Instead of redesigning the whole fixture, we just rotate the bushing to match the part.
Many machines use rotary tables, turrets, or conveyors to move items into specific positions. These need to lock accurately in place to work right. Over time, the grooves or detents where spring plungers land can wear out, causing looseness or backlash. Eccentric bushings help fix that by letting us shift the plunger slightly deeper or at a better angle. A small adjustment makes the lock feel tight again, and that keeps the whole system moving smoothly without delays or missed alignments.
In high-precision machines like optical instruments or lab tools, even the tiniest misalignment can throw things off. When we're working with sensors, lenses, or moving arms in robotics, it’s important to hold parts exactly where they belong. Eccentric bushings let us apply gentle, adjustable pressure using spring plungers. This helps keep sensitive parts stable without crushing or shifting them. In tools like printers or microscopes, this kind of micro-adjustment makes sure the final assembly meets exact specs without reworking or damage.
Choosing the right material for an eccentric bushing depends a lot on where it’s being used. Each material brings different strengths to the table, so it's important to match it with the demands of the environment or equipment.
For most general-purpose uses, case-hardened steel is a solid choice. It’s tough, cost-effective, and widely available. The surface is heat-treated to resist wear, which means it holds up well under repeated use. Many of these bushings also come with a black oxide coating. That doesn’t just make them look good—it adds a thin layer of rust protection. So if you're working indoors or in a fairly controlled shop setting, this option works great for daily wear and tear.
When the environment calls for cleanliness or moisture resistance, stainless steel is the safer bet. It won’t rust like regular steel, so it fits well in places like food processing lines, medical equipment, or any system where washdowns are common. It’s also the go-to when we need to avoid contamination. While it may cost more than standard steel, its long-term durability and low-maintenance properties often make up for it over time.
These materials don’t show up as often in spring plunger setups, but they still have their place. Bronze bushings are sometimes used when we want a bit of self-lubrication. Some are even oil-impregnated during production, which means they slowly release lubrication as they run. That can help reduce friction and keep things moving smoothly. However, since spring plungers don’t always rotate or slide the way shafts do, this material is used less often in this exact context. Still, in special builds or where movement is more dynamic, they can be helpful.
| Material Type | Key Features | Best Used In |
|---|---|---|
| Case-Hardened Steel | Durable, economical, black oxide | General-purpose, low-moisture setups |
| Stainless Steel | Corrosion-resistant, clean-surface | Food, medical, high-humidity areas |
| Bronze/Oil-Impregnated | Self-lubricating, lower friction | Specialized, dynamic motion systems |
Picking the right eccentric bushing isn’t just about grabbing one that looks like it fits. You’ve got to consider how it works with the spring plunger, the fixture, and the type of adjustment you're trying to make. Getting one detail wrong could throw off the whole setup or limit how precise your adjustments can be.
Start by checking the thread size on the spring plunger. Most bushings come threaded on the inside, so they need to match perfectly. Common sizes include M8 or M12, but always double-check your specs. If the threads don’t match, the plunger either won’t fit or it may come loose during use.
Next, the bushing’s outer diameter has to match the hole it fits into. If it’s too loose, it’ll shift around when adjusted. Too tight, and it might not go in at all. Most setups use a reamed hole for a clean fit, so take exact measurements before pressing it into place.
This is where precision really comes into play. The eccentricity value, often shown as e, controls how far the plunger tip can shift. Since the total adjustment range is 2e, you need to calculate how much flexibility you want. A small value like 0.3 mm gives you fine control. A larger one like 0.8 mm allows for more movement. Don’t overdo it—more isn’t always better if it compromises stability.
The length of the bushing should match the thickness of the part or plate it’s going into. If it’s too short, it won’t hold firmly. If it sticks out too far, it could get in the way or cause uneven pressure. Always measure your fixture depth before choosing a bushing length.
Last but not least, think about how the bushing stays in place. Some are designed as press-fit types, relying on friction alone. These are fine in low-vibration setups. Others come with a set screw that locks the bushing in place after adjustment. That’s a better choice for machines that shake, move, or deal with changing loads.
| Selection Factor | What to Check | Why It Matters |
|---|---|---|
| Thread Size | Match plunger (e.g., M8, M12) | Ensures secure fit and function |
| Outer Diameter | Fits hole size precisely | Prevents wobble or misalignment |
| Eccentricity Value (e) | Based on needed adjustment range | Affects positioning accuracy |
| Length | Matches fixture thickness | Avoids instability or interference |
| Locking Mechanism | Press-fit or set screw | Keeps adjustment from shifting |
Setting up an eccentric bushing takes a bit of care, but it’s not too tricky once you know the steps. The key is precision. Every part needs to fit just right so that the adjustment works smoothly and holds steady. Whether you're working on a jig or a positioning fixture, following a consistent process helps avoid mistakes and keeps the plunger doing its job.
Prepare a precision-fit mounting hole
Start by drilling or reaming the mounting hole to match the outer diameter of the bushing. This hole needs to be clean and accurate. If the fit is too loose, the bushing might rotate on its own. Too tight, and you risk damaging the part during installation.
Press or insert the bushing
Depending on the type, either press the bushing into place or slip it in with a light tap. Use an arbor press if it’s a press-fit model. Make sure the face of the bushing is flush and any adjustment notches or holes remain visible and accessible after it’s seated.
Thread in the spring or ball plunger
Once the bushing is in position, thread the spring plunger into the inner hole. Don’t overtighten it. The goal is to keep it snug without distorting the thread or shifting the bushing. It should move freely as you make adjustments.
Use a spanner wrench to rotate and adjust position
Find the notches or holes on the bushing’s outer face. Use a spanner wrench or a matching driver tool to rotate the bushing. As it turns, the plunger tip will shift in a circular path due to the eccentric design. Keep adjusting until the plunger touches the part or rests in the ideal location for locking, aligning, or pressing.
Lock the bushing (if needed)
Some bushings stay tight just from the press-fit. Others need a little extra security, especially in vibrating machines. If your model includes a set screw or locking feature, tighten it once the position is set. That helps prevent drift during operation.
Verify alignment and function
Now check the setup. Move the part, engage the plunger, or cycle the mechanism to see how it behaves. If it holds firmly and resets properly, you’re good to go. If not, loosen the lock, tweak the angle a little more, and test again.
| Step | Task | Purpose |
|---|---|---|
| 1 | Machine the mounting hole | Ensures a proper fit for the bushing |
| 2 | Install the bushing | Positions it correctly for adjustment |
| 3 | Thread in the plunger | Prepares for contact and pressure control |
| 4 | Rotate to adjust | Shifts plunger tip for fine positioning |
| 5 | Lock in place | Secures the setting during machine use |
| 6 | Test the system | Confirms function before full operation |
Eccentric bushings may be small, but they offer serious advantages when it comes to fine-tuning spring plunger positioning. Still, like any tool, they’re not perfect for every situation. Here’s a closer look at what makes them useful, and where they might fall short.
High-precision micro-adjustments
When you need to move a spring plunger just a fraction of a millimeter, these bushings make it easy. The offset hole rotates and shifts the plunger tip smoothly. That allows for extremely fine adjustments without drilling new holes or reworking the fixture.
Faster setup and realignment
In manufacturing or assembly, time adds up fast. Instead of measuring and rebuilding fixtures, users can just rotate the bushing and lock it in. It saves effort during part swaps or when something shifts slightly out of place.
Versatility for varying part sizes
No two parts are exactly alike. Eccentric bushings let us adjust to those differences on the fly. A slight turn can tighten up a loose fit or release pressure if something's too tight. That flexibility works well in systems dealing with wide tolerances.
Increased fixture lifespan
Parts wear out, especially in high-volume setups. Rather than scrapping an entire fixture just because the plunger no longer lines up, this system gives it a second life. Adjust the bushing and keep the whole thing running longer.
Cost savings over fixture replacement
Buying or rebuilding a new fixture every time something wears or shifts gets expensive. Eccentric bushings offer a low-cost alternative by making one fixture work across multiple runs or conditions.
Limited range of motion (small adjustment window)
Even at full rotation, the plunger only moves by 1 to 2 millimeters, depending on the bushing. That’s great for fine-tuning but won’t help if the part is way off to begin with.
Not suitable for large adjustments or X-Y control
They adjust position in a circular path. That means you only get movement in a single arc—not full control across both axes. So for anything requiring wide or independent shifts in X and Y directions, this setup won’t do the job.
Need for secure locking in high-vibration environments
In machines that move or shake a lot, there’s always a chance the bushing might rotate on its own. If it's not locked in tightly, the setting may drift. That could lead to misalignment or even damage.
Higher upfront cost than standard bushings
Eccentric bushings require more precise manufacturing. That means they cost more than regular ones. While they can save money over time, they may not make sense in low-precision, one-time-use setups.
Eccentric bushings take the basic function of a spring plunger and make it much more precise. By allowing small, controlled adjustments, they help improve alignment, hold parts better, and extend the life of tools and fixtures. Whether used in jigs, indexing setups, or fine assembly work, they add real value to mechanical designs that demand both flexibility and accuracy.
It allows precise adjustment of a spring plunger's position by rotating the bushing and shifting the plunger's tip.
No. They typically work only with lateral spring plungers, not standard ball plungers.
The adjustment range is twice the eccentricity value. For example, if e = 0.5 mm, total shift = 1.0 mm.
Yes, especially in high-vibration setups. Use press-fit or a set screw to hold the position securely.
They can be reused if undamaged, but fit and locking ability should be re-checked before reinstalling.
