Ever wonder how machines lock parts perfectly into place? The secret is often a small but powerful tool called a spring plunger. These clever devices help position, lock, or release components with precision.
In this post, you’ll learn what a spring plunger is, how it works, where it’s used, and how to choose the right one for your needs.

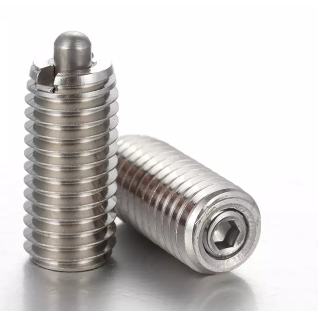

A spring plunger, sometimes called a spring-loaded device or ball plunger, is a tiny mechanical tool that does a pretty big job. It's designed to apply force using a spring, pushing a ball or pin outward from its body. That little ball or pin can lock into place, hold parts in position, or pop them out when needed. You’ll find spring plungers in tools, machines, furniture, and even electronics. Though small, they make a big difference in precision and performance.
These devices are often used when you need something to stay put but also move easily when it's time. Think of it like a smart stop that’s always ready. Need to click a machine part into place, hold it firmly, and then let it go? That’s what spring plungers do best. Whether in heavy-duty machinery or everyday items, they quietly manage important positioning and locking jobs.
You’ll see them in use across many industries. Manufacturing lines rely on them to guide or hold components. Automotive systems use them for gear shifts or seat adjustments. Even in furniture, like adjustable chairs or shelving units, spring plungers are hard at work. They’re common in jigs, fixtures, connectors, latches, and more.
Now let’s look at how they actually work.
The mechanism behind a spring plunger is surprisingly simple. Inside the housing is a tightly coiled compression spring. On one end of the spring sits a small ball or pin. The spring constantly pushes this tip outward. When something presses against it, the ball or pin gets pushed back into the housing, compressing the spring. Once that pressure is gone, the spring pushes it right back out.
That means the tip is always ready to engage, press, or lock into place. It’s this automatic push-and-return motion that makes spring plungers so useful in locking and indexing systems. You don't need electricity or manual screws—just basic spring force does the job.
Let’s go through a quick example. Say you have a piece of metal that needs to stop in the same position every time. You place a spring plunger in line with that part. As the metal moves forward, it pushes the ball in. When it reaches the target position, the ball pops out into a small hole or notch, locking it right there. When the part moves again, the ball pushes back in, allowing movement. That’s it—simple and repeatable.
Different spring plungers offer different strengths and styles. Some have lighter springs for gentle holding. Others are built heavy-duty for high-pressure locking. You’ll also find various tip shapes: some are round balls, others are flat pins. Choosing the right one depends on how much holding force you need and what kind of surface the plunger is working with.
In short, a spring plunger provides consistent, controlled force that keeps things where they’re supposed to be—or helps them move when they should. It’s like having a mechanical fingertip, always ready to press, hold, or let go.
A spring plunger might look small, but it’s made up of a few carefully designed parts that all work together. Each piece plays a specific role. When combined, they create a powerful and reliable tool for positioning, locking, and more. Let’s break down the three main components and how each one works.
The threaded body is the outer shell of the spring plunger. It holds everything inside and makes installation possible. You’ll usually screw it into a pre-tapped hole, and once it’s in place, it keeps the whole unit secure. Most threaded bodies are made from stainless steel, carbon steel, or other tough materials. That way, they can hold up under force and stay in place even after repeated use.
Thread options vary depending on where and how you plan to use them. Some plungers come with a hex socket on the top, letting you tighten them using an Allen wrench. Others use a slotted drive, which works great if you’re installing them using a standard flathead screwdriver. If you’re working in tight or enclosed areas, you might run into blind-hole versions. These are made to sit flush inside a hole where you can't access the back. Choosing the right thread style makes installation easier and ensures a secure fit.
At the heart of every spring plunger is the compression spring. This is what creates the force behind the movement. It’s a coiled spring that pushes the plunger tip outward until something pushes it back. That constant tension is what allows a spring plunger to do its job over and over again.
Springs are usually preloaded, which means they already have tension inside the body. That preload helps the tip snap back into place right after it's been pushed in. The strength of the spring can vary. Some are made for light holding, others for heavy-duty use. You don’t usually adjust the spring force manually, but selecting the right model means you can match the force level to your specific application. Whether you’re working on sheet metal or heavy machinery, there’s a spring force range that fits.
The plunger tip is the part that actually makes contact with other surfaces. Depending on the type, it can be a rounded ball or a cylindrical pin. Each shape has its own benefits.
Ball tips are most common. They roll easily and slide into grooves or indents without digging in. That makes them great for applications where smooth contact matters, like when parts need to slide or rotate. Pin tips, on the other hand, provide a more defined engagement. They’re better for locking into fixed holes or when you need precise stops. You’ll often see pin-style tips in applications that demand accuracy.
No matter the shape, the tip works with the spring to extend out and engage with whatever it’s touching. It presses into place, holds steady, and retracts when pressure is applied. Tips are usually made from hardened steel or similar materials that resist wear. That way, they can handle thousands of cycles without losing their shape or strength.
Spring plungers come in many different types, each one built for a specific task. Some are better for smooth sliding parts, while others are made for precise locking. Choosing the right type depends on how you need the plunger to perform. Here’s a closer look at the most common spring plunger types and what makes them different.
Ball plungers use a rounded ball at the tip. This shape lets the ball roll easily over surfaces or into small detents. Because of this, ball plungers are ideal for smooth and consistent engagement. They don’t dig in or damage surfaces, which makes them perfect for delicate assemblies or moving parts.
You’ll find ball plungers in applications where things need to snap into place gently but securely. Think of sliding panels, latches, or rotating elements that need that soft “click” when aligned. These plungers are often made with thread locking elements, helping them stay put once installed.
Pin plungers swap the rounded tip for a flat or cylindrical pin. This gives you a more exact point of engagement. Unlike a ball that rolls into place, the pin inserts directly into a notch or hole.
That makes pin plungers the better choice when you need tight positioning or precise stops. You’ll often see them in tooling setups, precision equipment, or alignment fixtures. They don’t allow much movement once locked in, which is exactly what some projects demand.
These are made for situations where you need to lock and release by hand—fast. They come with a handle or knob that you twist or pull. With a simple 90-degree turn, the tip stays retracted until you twist it back.
Hand retractable plungers are super helpful when you need one-handed control. We often see them on sports gear, medical devices, or adjustable frames. They’re easy to use, quick to reset, and built for flexibility.
Threaded plungers are some of the most common types around. They screw directly into threaded holes and are often used in machine tools, jigs, and woodworking systems.
What sets them apart is their repeatability. The internal spring provides a steady force, so every push or release feels the same. That’s valuable when your job requires reliability over many cycles. Their threaded design also makes them easy to remove or swap out.
If you’re working with soft materials like plastic, wood, or aluminum, press fit plungers are a smart option. They don’t need threads. You simply press them into place, and they stay locked by friction.
They’re affordable, simple, and great for parts that don’t need frequent adjustment. Just be sure the hole fits snugly, or the plunger might loosen over time. These are often used in furniture parts, consumer products, or lightweight fixtures.
This type uses a ring to activate the plunger. You pull the ring to retract the tip, then release it to lock it into place again. It’s a fast, simple way to change positions or settings on the fly.
Pull pin plungers are ideal for anything adjustable—like tubing, gates, or sliding mechanisms. The outer ring stays accessible for quick changes, while the body stays firmly mounted inside the equipment.
Push pin plungers, also known as two-way plungers, offer action in both directions. They usually include tapped holes on both ends so you can attach knobs, pads, or other accessories.
This makes them useful for mounting special fixtures or for positioning parts using custom end fittings. They can be used for traction or thrust, depending on your setup. Most are made of steel and built for durability.
Indexing plungers are made to lock items into specific positions. They use a retractable nose that fits into holes or slots. When you want to move something, you just pull the knob or ring, which pulls the nose back. Once aligned, the tip snaps into place again.
These are super common in setups that rotate, adjust, or move through fixed points. Depending on the design, you can choose from versions with knobs, rings, or simple threaded pins. Each one gives you control over when and how the plunger engages.
Spring plungers are used in a wide range of industries, from heavy machinery to household items. They’re chosen not just for their strength, but for their ability to hold, lock, and release parts quickly and reliably. Let’s take a closer look at where they show up and how they make things work better.
In factories and workshops, precision matters. That’s where spring plungers shine. You’ll find them in jigs and fixtures—helping operators place and secure parts in the exact same spot every time. They’re perfect for repeatable operations like drilling, welding, or assembling.
They also work in detent mechanisms. These setups rely on spring pressure to create a tactile “click” when something moves into place. Think of rotating parts that need to stop at fixed angles. The plunger locks the part until it’s pushed past a certain point, then it pops into the next notch.
Inside vehicles, spring plungers help control and position various moving parts. One common place is the gear shift. As the driver changes gears, plungers can provide that smooth locking motion between gear positions.
You’ll also find them in seating systems. Whether it’s adjusting the backrest angle or sliding the seat forward, spring plungers make those movements feel solid and repeatable. They help parts stay locked until the driver or passenger makes a change.
In electronics, things need to connect smoothly and reliably. That’s why spring plungers are used in connectors and switches. A ball or pin-style plunger can keep two pieces pressed together without adding too much resistance.
They’re often found in plug-in modules or removable components. When a user pushes something into place, the plunger locks it securely. When removed, the spring helps it pop back out. These tiny movements make sure devices work consistently without loose connections.
Spring plungers play a big role in adjustable furniture. Reclining chairs, for example, often use them to lock the backrest into different angles. As the user leans back, the plunger moves through set positions and holds the chair firmly in place.
Modular shelving systems also use spring plungers. Each shelf or section clicks into position and stays there until someone removes it. That makes it easy to customize layouts without tools or extra hardware. You’ll also see spring plungers in folding tables, sliding drawers, or hidden storage panels.
For medical tools and sports gear, spring plungers help with locking and adjustment—but they need to be lightweight and reliable. In hospital equipment, they may be used to secure movable arms, trays, or screens. The user can reposition them without fuss and know they’ll stay locked.
In sports equipment, such as gym machines or bicycles, spring plungers let users adjust positions with just a quick pull or press. They provide the right amount of tension without needing wrenches or knobs. Many designs are built for one-handed use, which is perfect in fast-paced or mobile settings.
Spring plungers offer a mix of simplicity and reliability, which makes them a favorite in many industries. Their design may look basic, but each part works together to deliver accurate performance without overcomplicating things. Let’s walk through the key benefits that make these small components so useful.
At first glance, a spring plunger doesn’t look like much. But inside, there’s a well-balanced system at work. It only takes a few core parts to get the job done—a threaded body, a spring, and a plunger tip. That’s it. Fewer parts mean fewer things that can go wrong. You don’t need wires, electronics, or external power. Once installed, it simply works—pushing out, holding steady, and popping back into place.
This simplicity also makes troubleshooting easier. If something feels off during operation, it usually takes just a quick check or swap to get everything back in order.
One of the best things about a spring plunger is its ability to deliver the same pressure every time. That’s important when precision matters. Whether it’s positioning a part, creating a detent, or helping something lock in place, the internal spring provides the same level of force with each cycle.
In applications where timing or alignment must be exact, this repeatable action becomes a real advantage. It’s also helpful in setups that need a clear click or stop between movements.
No special tools are needed to install most spring plungers. Many of them come threaded, so you just screw them into place. Others are press-fit, meaning you just push them into a hole without any threading required. Some even have built-in drive styles like hex sockets or slotted heads, which match tools you already have in your workshop.
That makes them ideal for both quick replacements and new builds. Whether you’re working on-site or assembling in a factory, you’ll save time during setup.
Even though spring plungers handle important jobs, they don’t cost much. Compared to complex locking systems or powered actuators, they’re budget-friendly and efficient. That’s one reason they’re used in high-volume production lines—because they get the job done without raising costs.
They also hold up well over time. Most are made from steel, stainless steel, or even technopolymer materials. These can take pressure, resist wear, and keep working cycle after cycle. You don’t need to service them often, and when you do, replacing one is quick and inexpensive.
Not all spring plungers are built the same, which is a good thing. Depending on your project, you can pick the exact material and size you need. If you’re working in a damp or outdoor area, stainless steel options offer great corrosion resistance. For lighter or decorative projects, nylon or plastic plungers might be a better fit.
Sizes also vary, from small plungers for electronics to larger ones for industrial machines. You can match the tip shape, spring force, and thread type to your specific job. This flexibility means spring plungers can be used in almost any environment—from clean labs to dirty shop floors.
Not all spring plungers are built the same, and picking the right one depends on where and how you plan to use it. From the material to the force level, every detail affects how well the plunger will perform. Here's what to keep in mind when you're making a choice.
Spring plungers come in a variety of materials, each suited for different environments. Stainless steel is one of the most common choices. It resists rust and handles moisture well, so it's great for outdoor or humid applications. Brass is another good option, especially when you need a softer material or something that resists sparking. Standard steel plungers work in most indoor setups where corrosion isn’t a big issue. For lighter-duty or non-metal surfaces, technopolymer or plastic plungers offer a safe and affordable alternative.
It’s important to match the material to your working conditions. If the plunger will face water, chemicals, or heavy vibration, you'll want something that won’t break down easily.
Even if the base material is tough, a protective coating can add extra defense. Some plungers have black oxide or zinc finishes that shield them from wear and corrosion. This helps extend their lifespan, especially in machines that operate in dirty or high-moisture spaces.
If you’re working in food processing, medical, or outdoor environments, coated plungers might give you better long-term results. Some finishes also reduce friction, which makes the tip move more smoothly.
How the plunger is installed matters just as much as how it works. There are several installation styles, and each one fits different setups. Hex socket types are easy to install using an Allen wrench, which is great when you're working with tight spaces or machines. Slotted drives allow for basic screwdriver installation and are often used for simple mounting. For applications where access is limited or you can’t reach the back of a hole, blind-hole plungers offer a smart solution.
Make sure your mounting hole matches the drive style and size, or the plunger may not sit flush or lock in properly.
Spring plungers are available in a range of sizes, and you’ll want to choose one that fits your design. Most common lengths fall between 0.35 and 1.75 inches. But it's not just about length—diameter and thread type matter too.
If the plunger is too small, it might not apply enough force or stay secure. If it's too large, it may not fit your part or may require oversized mounting holes. Always check size charts or product specs before you place an order.
The strength of the internal spring controls how much pressure the plunger can apply. You’ll typically see options labeled as light, standard, or heavy force. Light-force plungers are better for delicate surfaces or low-resistance tasks, where too much pressure might cause damage. Standard models are good for everyday use—offering a balance of holding power and easy release.
Heavy-duty plungers provide strong holding force and are used in tough setups where components must stay locked even under stress. Think of metal stamping tools or large machinery. Choose the force level that matches your part’s weight, movement, and precision needs.
Spring plungers may be small, but they make a big impact. These clever devices help lock, position, and release parts in everything from machines to furniture. Their simple build, low cost, and consistent performance make them a go-to solution in many industries. Whether you're working in manufacturing, electronics, or automotive design, a spring plunger can make your job easier.
For tough jobs that demand extra strength, try our heavy duty spring plunger. It's built to perform under pressure and keep things in place when it matters most.
A spring plunger is used for positioning, locking, indexing, or ejecting parts in mechanical systems. It provides controlled, repeatable force.
Ball plungers offer smooth rolling contact, while pin plungers provide precise locking into holes or fixed positions.
Yes, many spring plungers can be removed and reused if they’re still in good condition and not worn down.
It depends on your application. Light force is for delicate work; heavy force is for secure locking in demanding environments.
Stainless steel or coated plungers are best for resisting rust and corrosion in outdoor or humid settings.
