Ever wondered how machines lock, click, or hold parts in place with precision? It’s often thanks to tiny tools called spring-loaded devices. Among them, spring plungers and ball plungers do the heavy lifting. But what exactly sets them apart—and why does it matter?
In this post, you’ll learn the key differences between spring plungers and ball plungers, how each works, and where they’re most useful in real-world applications like furniture, robotics, and machinery.
A spring plunger is a small mechanical device that uses an internal spring to push a pin or nose outward. It creates a constant force that helps lock, hold, or position parts during use. When pressure is applied to the tip, the spring compresses, letting the pin slide in. Once released, the spring forces it back out. This motion is perfect for indexing, securing, or aligning components in tools, jigs, and machines. You’ll often see them used in manufacturing setups, furniture assembly, and mechanical equipment where things need to stay in place or snap into position easily.
Every spring plunger has three main parts. First, there's the threaded body. That’s the outer shell that screws into the workpiece. Inside it sits the compression spring, which delivers the force. At the tip is the nose, also called the plunger. It moves in and out as pressure is applied or released. Some models have a retractable handle that lets you pull the nose back by hand without tools.
Spring plungers come in a variety of materials based on where and how they’ll be used. Stainless steel works great for rust resistance and strength. Carbon steel is also strong but may need extra coating. Brass and nylon offer lighter-duty options, especially when you don’t want to scratch surfaces. Many metal plungers include coatings like black oxide or zinc to reduce wear and prevent corrosion.
There are several types available to match different needs. Hand-retractable spring plungers allow easy manual operation for quick changes. Press fit plungers don’t need threads and are pushed into place instead. Some plungers use a hex socket for installation, while others rely on a slotted drive or top slot—especially useful in blind hole applications. Sizes range from under half an inch to several inches long, and many models are customizable for force, material, and thread type.

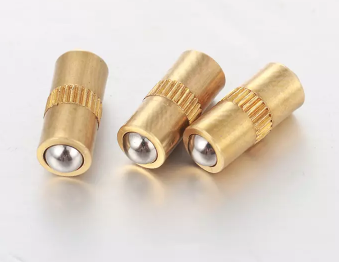

A ball plunger is a spring-loaded device that uses a small ball-bearing tip instead of a pin. When you press against the ball, it sinks slightly into the body, compressing the internal spring. Once the force is gone, the spring pushes the ball back into place. This allows parts to lock or click into position with minimal effort. Because the ball moves smoothly, it works great for drawers, doors, panels, or other setups where parts need to align or snap gently into place.
Each ball plunger has a few key parts that make it function. The top has a round steel ball designed to roll or press inward. Beneath the ball is a compression spring, which creates the force needed for return action. All of it sits inside a threaded body that looks similar to a screw. At the bottom, there’s usually a slotted drive that lets you install or remove the plunger using a screwdriver. These simple parts combine to give reliable performance in light-duty applications.

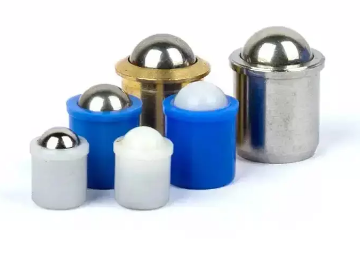

Most ball plungers are made from steel, brass, or nylon. Steel ones offer good strength and durability. Brass is softer and ideal for applications where scratching must be avoided. Nylon works well in very lightweight or non-metal setups. Unlike spring plungers, ball plungers usually don’t come with extra surface coatings. So while they’re fine for indoor or dry use, they may not handle moisture or chemicals as well.
One reason people choose a ball plunger is how smoothly it moves. The ball creates rolling contact instead of sliding, which reduces friction. That makes it easier for parts to shift in and out of position without getting stuck. These plungers aren’t built for heavy loads though. Their design keeps the ball from sinking too deep, limiting how much force they can handle. But for quick positioning, snapping parts together, or making simple adjustments, ball plungers get the job done without a lot of effort.
The most obvious difference is at the tip. A spring plunger has a narrow pin or nose that moves straight in and out. A ball plunger uses a rounded ball that rolls slightly when pushed. This affects how each one makes contact. Spring plungers push directly against surfaces using a point or flat face. That creates more grip and locking power. Ball plungers, on the other hand, give you rolling contact. That makes movement smoother and better for parts that shift or glide.
If you're working with heavier loads or need a strong hold, spring plungers are the better choice. Their design lets them handle more force. The internal spring pushes the pin firmly into place, making it ideal for locking or absorbing shock. Ball plungers are meant for lighter loads. Because the ball sits in a shallow groove, it can't go deep or resist much pressure. But that’s exactly why it’s great for lighter, quicker adjustments.
You’ll see spring plungers in setups where parts must stay fixed or resist vibration. That includes tooling fixtures, machines, or adjustable platforms. They can also support or cushion between objects. Ball plungers are used when movement matters. Drawers, panels, or positioning knobs benefit from their smooth motion. In electronic devices, robotics, or cabinets, ball plungers let parts snap or align gently without locking too tight.
Both types often come threaded and can be screwed into place using common tools. You’ll find slotted drives or hex sockets depending on the model. For tight spots or blind holes, spring plungers sometimes offer top-slot designs that simplify installation. Press-fit versions also exist if you don't want threads at all. Ball plungers usually stick to standard threading and are installed much like small bolts.
Spring plungers are built to last under pressure. They deal well with repeated impacts or strong locking needs. But over time, the pin tip may wear down if it rubs constantly against metal. Ball plungers don’t take as much abuse. Their ball is more prone to damage if exposed to heavy shock or rough use. Still, for light-duty jobs, they operate smoothly and reduce friction. Each type has strengths based on how and where it's used.
Spring plungers are built for jobs that demand strength and stability. One of their biggest advantages is how well they handle pressure. They can resist high loads without slipping, making them perfect for mechanical systems that need firm locking or repeated indexing. The plunger tip stays pressed in place under tension, holding parts steady even during movement or vibration.
Another benefit is their flexibility. You can use them across a wide range of setups, from tool fixtures to sliding assemblies. They come in many sizes, styles, and materials, so it’s easy to find one that fits both the space and the performance you need. Whether you’re working in metalworking, furniture assembly, or machine building, spring plungers offer reliable control.
But they’re not flawless. Since the nose or pin presses directly against a surface, it can wear out faster than a rolling part. In setups where the same spot gets frequent pressure, the contact area may show marks or damage over time. If the plunger isn't lubricated or matched to the right material, this kind of wear happens even faster.
Ball plungers are all about smooth, low-resistance movement. The rounded ball at the tip rolls instead of sliding, which keeps friction low and helps parts engage or disengage effortlessly. That makes them great for quick positioning or alignment tasks. You’ll often find them in drawers, knobs, doors, and light-duty mechanical setups where things need to snap into place gently.
Another nice feature is how easy they are to use. When pressure is applied, the ball moves inward with minimal force, then pops back into place once it's released. This rolling motion means less surface damage and quieter operation compared to plungers that use a solid pin. For applications where the look and feel matter, like furniture or electronics, they’re a good match.
Still, they do have limits. Ball plungers don’t handle high loads well. The ball only travels a short distance into the housing, so it can't lock parts down tightly or resist strong forces. In high-vibration or heavy-use setups, the ball might wear out faster or fail to hold the component securely. That’s why they’re best reserved for lighter, more flexible tasks.
Choosing the right plunger starts with understanding your application. If your setup involves locking, holding, or absorbing force, you'll want something that delivers strong pressure. That’s where spring plungers come in. They work well under tension and stay in place when things get rough. For lighter tasks, ball plungers might be all you need. They’re better when parts have to move easily and reset quickly.
Environmental factors matter too. In humid or corrosive spaces, you’ll want stainless steel or brass. Spring plungers often have better coating options that help them resist rust. Ball plungers may need extra care in those conditions. Also, consider the space. If your design has tight corners or blind holes, look for top-slot or press-fit styles. Lastly, check if the drive type matches your installation method. Some setups require a hex socket, others a slotted drive.
Use a spring plunger when the job calls for firm indexing or positive locking. They're great for high-vibration systems or moving machinery where parts have to stay locked in place. These plungers hold tight under pressure and handle repeated stress well. You’ll find them useful in automation setups, jigs, and mechanical stops where performance has to be consistent.
Ball plungers are your best bet when smooth movement matters more than holding force. They’re ideal for applications where components need to shift, align, or slide into place. If something needs to click in and out repeatedly without binding, the rolling action of a ball plunger gets the job done. Use them for drawers, knobs, lightweight panels, or electronic housings where low resistance and easy retraction are key.
Spring plungers and ball plungers may look similar, but they serve different purposes. Spring plungers use a pin to provide strong locking and resistance to vibration, while ball plungers offer smooth, low-friction movement for lighter tasks. Choosing the right one depends on how much force is needed, where it's used, and what kind of movement is involved. Always match the plunger type to your project's performance and environment needs for the best results.
Spring plungers use a pin tip and are better for high-force locking, while ball plungers use a rolling ball for smoother, lighter positioning.
No, ball plungers are designed for light-duty applications. They work best in setups needing easy retraction and minimal holding force.
Spring plungers are great for mechanical locking, indexing, and setups exposed to vibration or frequent force.
Both are easy to install, but spring plungers offer more drive types like hex sockets and top slots for blind holes.
Stainless steel spring plungers with protective coatings are ideal for resisting moisture and chemical exposure.
